Atari 5200 Schematics



Atari 5200 Board - I/O Section

Atari 5200 Board - I/O Section

Low Resolution Version (98K)
High Resolution Version (295K)


Atari 5200 Board - Processing Section

Atari 5200 Board - Processing Section

Low Resolution Version (96K)
High Resolution Version (294K)


Atari 5200 Board - ROM/RAM Section

Atari 5200 Board - ROM/RAM Section

Low Resolution Version (72K)
High Resolution Version (216K)


Atari 5200 RF Switchbox

Atari 5200 RF Switchbox

Low Resolution Version (107K)
High Resolution Version (321K)


Atari 5200 Accessories

Atari 5200 Accessories

Low Resolution Version (61K)
High Resolution Version (179K)

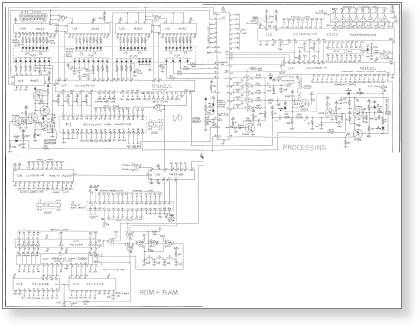

Atari 5200 Board - I/O, Processing, ROm/RAM (Stitched Together)

Atari 5200 Board
I/O, Processing, ROM/RAM
(Stitched Together)

Low Resolution Version (277K)
High Resolution Version (843K)

From the Bomarc Collection, Http://Bomarc.org
