#51 fabrice montupet OFFLINE

fabrice montupet

    Moonsweeper

  • Topic Starter
  • 262 posts
  • Location:Burgundy - France

Posted Sun Oct 15, 2017 4:52 PM

That's done, the TIny-99/4A micro-computer is finalized :-). It has successfully passed many tests of compatibility with this TI-99 / 4A, as well as all the tests of stability.  To tell you all, for testing purpose, the Tiny99/4A has replaced my daily TI-99/4A since 3 months and I have noticed no problem.




The new (metallic) chassis now contains the power supply, allowing the installation of two floppy drives and two PEB expansion cards. The cartridge port has been moved to the left. The switch switch at the front of the computer is for normal/turbo mode. Another feature: The TIny-99 / 4A is powered up by pressing a key on the extended keyboard.



The icing on the cake, I have designed two covers: one in aluminium, the other modeled with 3D printer, that I will receive soon.

I'm happy to have carry out this project. It was fun. The next one will surely be an enhanced version of the TIny-99/4A.



#52 remowilliams OFFLINE

remowilliams

    Quadrunner

  • 10,370 posts
  • Location:Detonation Boulevard

Posted Sun Oct 15, 2017 4:59 PM

That is so amazing that I'm simply stunned...



#53 Tursi OFFLINE

Tursi

    Quadrunner

  • 5,030 posts
  • HarmlessLion
  • Location:BUR

Posted Tue Oct 17, 2017 1:59 AM

Beautiful machine :)



#54 Ksarul OFFLINE

Ksarul

    River Patroller

  • 4,488 posts

Posted Tue Oct 17, 2017 4:03 PM

Will boards be made available so that others can build that piece of TI goodness?



#55 fabrice montupet OFFLINE

fabrice montupet

    Moonsweeper

  • Topic Starter
  • 262 posts
  • Location:Burgundy - France

Posted Wed Oct 18, 2017 1:03 PM

Thank you :')

The TIny-99/4A emerged as a personal fun project, no public production has been initialy planed. At the very first time, I launched the production of five PCB because it was the minimal quantity accepted by the PCB manufacturer. Then, I have received kind messages from Europe and United State people who wish to get  the Tiny99/4A. Of course, I will be happy to please them, to share the fun I have when I use my computer. So, I am thinking about the (reasonable) price that I could sell the TIny-99/4A considering that I will only propose a ready-to-play computer, and integrating only 80 years components as the project has been conceived, imagined.
The kit will contain:
- TIny-99/4A Motherboard, fully populated
- 2 slots 90° riser extender expansion card
- 90° slot cartridge connector
- 74 keys mechanical extended Keyboard
- Installation and configuration manual.
Optional: A ready-to-use small form factor Power Supply delivering +12v,-12v, +5V and -5V tensions.

I think that some people will prefer to order a non-populated TIny-99/4A PCB. I apologise in advance, I will not do because It not amuses me (I like to do the work until the end). I am conscient that I could sell more PCB if I propose them non-populated but, as I said before this project has never be thought as commercial purpose. Sell less or very few does not matter to me.


Edited by fabrice montupet, Wed Oct 18, 2017 1:08 PM.


#56 remowilliams OFFLINE

remowilliams

    Quadrunner

  • 10,370 posts
  • Location:Detonation Boulevard

Posted Wed Oct 18, 2017 1:11 PM

Oh my, that is something I am interested in...



#57 RickyDean OFFLINE

RickyDean

    Dragonstomper

  • 785 posts

Posted Wed Oct 18, 2017 1:29 PM

Thank you :')

The TIny-99/4A emerged as a personal fun project, no public production has been initialy planed. At the very first time, I launched the production of five PCB because it was the minimal quantity accepted by the PCB manufacturer. Then, I have received kind messages from Europe and United State people who wish to get  the Tiny99/4A. Of course, I will be happy to please them, to share the fun I have when I use my computer. So, I am thinking about the (reasonable) price that I could sell the TIny-99/4A considering that I will only propose a ready-to-play computer, and integrating only 80 years components as the project has been conceived, imagined.
The kit will contain:
- TIny-99/4A Motherboard, fully populated
- 2 slots 90° riser extender expansion card
- 90° slot cartridge connector
- 74 keys mechanical extended Keyboard
- Installation and configuration manual.
Optional: A ready-to-use small form factor Power Supply delivering +12v,-12v, +5V and -5V tensions.

I think that some people will prefer to order a non-populated TIny-99/4A PCB. I apologise in advance, I will not do because It not amuses me (I like to do the work until the end). I am conscient that I could sell more PCB if I propose them non-populated but, as I said before this project has never be thought as commercial purpose. Sell less or very few does not matter to me.

Fabrice, you can place me on that list. I place my order today, thanks for loving our old lady, the TI99/4A.



PS. This would go into my tower with my RAVE PEB board and Geneve, if I do get one. :)


Edited by RickyDean, Wed Oct 18, 2017 1:42 PM.


#58 ti99iuc OFFLINE

ti99iuc

    Stargunner

  • 1,361 posts
  • Location:Italy

Posted Wed Oct 18, 2017 2:14 PM

I think the list of 5 is already completed months ago :P isn't it Fabrice ?


Edited by ti99iuc, Wed Oct 18, 2017 2:38 PM.


#59 RickyDean OFFLINE

RickyDean

    Dragonstomper

  • 785 posts

Posted Wed Oct 18, 2017 2:27 PM

I think the list of 5 is already completed months ago :P isn't it?

Oh well, one can dream can't they.



#60 Ksarul OFFLINE

Ksarul

    River Patroller

  • 4,488 posts

Posted Wed Oct 18, 2017 3:51 PM

I do hope I am on that list. . .  :)



#61 ti99iuc OFFLINE

ti99iuc

    Stargunner

  • 1,361 posts
  • Location:Italy

Posted Wed Oct 18, 2017 4:33 PM

Yes me too of course :P

#62 warpman OFFLINE

warpman

    Space Invader

  • 20 posts
  • Location:Maryland

Posted Wed Oct 18, 2017 5:50 PM

I as well.  Would love one.  :)



#63 LASooner OFFLINE

LASooner

    Moonsweeper

  • 265 posts

Posted Thu Oct 19, 2017 1:32 AM

I would buy one.



I love supporting projects like this, and kick myself when I miss out on one.



#64 Sinphaltimus OFFLINE

Sinphaltimus

    River Patroller

  • 2,462 posts
  • Distracted at the Keyboard
  • Location:Poconos, PA

Posted Thu Oct 26, 2017 10:39 AM

Interested as well!



#65 retroclouds ONLINE

retroclouds

    Stargunner

  • 1,589 posts
  • Location:Germany

Posted Thu Oct 26, 2017 10:48 PM

Me too! Would love to have one.

#66 fabrice montupet OFFLINE

fabrice montupet

    Moonsweeper

  • Topic Starter
  • 262 posts
  • Location:Burgundy - France

Posted Mon Jan 1, 2018 12:34 PM

Sorry about the delay.  I would like to give you some news about my TIny-99/4A computer. I had to modify it to make it compatible with the excellent FinalGrom card. I also brought new features like a 32Kb user ROM space (it can contains as we want: E/A program, FDC tools or any else ROM base programs), a Real Time Clock, 3 slots for PEB cards, the PCB is even more tiny (8.42" x 9.52"). So it has been totally redesigned. I will send the gerber files to a manufacturer at the end of january to produce the PCB.

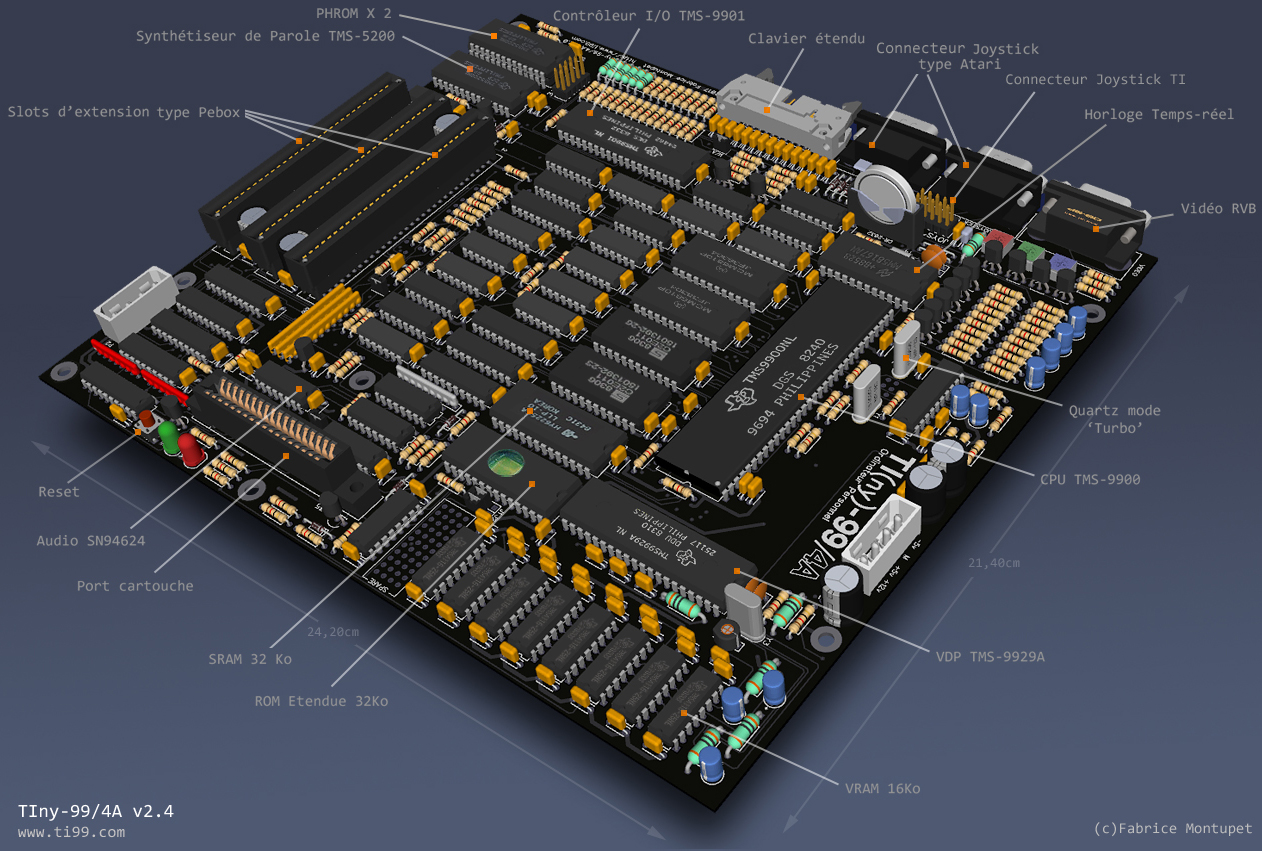

Here is a 3D picture of the finalized PCB (v2.4), with description in... French, but easily comprehensive :-)






#67 sometimes99er OFFLINE

sometimes99er

    River Patroller

  • 4,111 posts

Posted Mon Jan 1, 2018 12:38 PM

So nice. :)



#68 Ksarul OFFLINE

Ksarul

    River Patroller

  • 4,488 posts

Posted Mon Jan 1, 2018 1:49 PM

I love this project!



#69 ti99iuc OFFLINE

ti99iuc

    Stargunner

  • 1,361 posts
  • Location:Italy

Posted Mon Jan 1, 2018 2:15 PM

It is Fantastic... please put me in for everything you will do, be sure that i will interested :P



#70 jedimatt42 OFFLINE

jedimatt42

    Stargunner

  • 1,518 posts
  • Location:Beaverton, OR

Posted Mon Jan 1, 2018 3:02 PM

Fabrice, that is beautiful!

I'm curious, what was the compatibility issue you had with the FinalGROM99 cartridge?

-M@

#71 Andrewmacattack OFFLINE

Andrewmacattack

    Space Invader

  • 19 posts
  • Location:South Wales. UK

Posted Mon Jan 1, 2018 4:16 PM

Definitely interested in this. Look forward seeing final product.

#72 Shift838 OFFLINE

Shift838

    River Patroller

  • 2,164 posts
  • SHIFT838
  • Location:Deer Park, Texas

Posted Tue Jan 2, 2018 2:01 AM

i'm always amazed by your designs...



#73 RickyDean OFFLINE

RickyDean

    Dragonstomper

  • 785 posts

Posted Tue Jan 2, 2018 10:26 AM

Fabrice, you are the man, excellent work  :)

Keep on setting the standards. Thanks for your contributions to our hobby.!!!



#74 digdugnate OFFLINE

digdugnate

    Stargunner

  • 1,208 posts

Posted Tue Jan 2, 2018 1:21 PM

that is fan-flipping-tastic.  if you ever do decide to do a 'production run' of the boards, count me on the list!



#75 Opry99er OFFLINE

Opry99er

    Quadrunner

  • 9,250 posts
  • Location:Hustisford, WI

Posted Thu Jan 4, 2018 9:55 AM

Id like to buy a completed system, if perhaps one day you happen to make an extra one. :)

It would be the most prominent computer in all my house. :)

I would be willing to donate 3 TIs and 2 PEBs for you to use for parts if needed... This, of course, would be in addition to whatever price you deem appropriate for sale of this magnificent piece of kit.

Im blown away, fabrice. This is amazing work!
